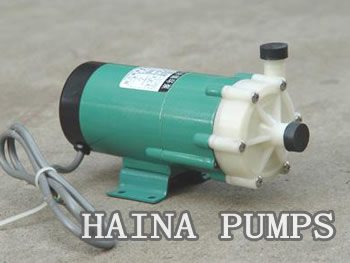

MP Magnetic Drive Pumps

MP Magnetic Drive PumpsMP Magnetic drive pumps
Flow:2.8~230L/Min
Head:0.8m~18m
Motor power:6W~2200W
Access interface: hose interface and threaded interface.

Model significance of MP magnetic driving pump:
For example:MP-20R-X100
MP:MP plastic magnetic drive circulation pump.
20R:product standard
X-no code name is common type :M is the threaded interface for import and export,X is large flow type,Z is high head type,T is special purpose,N is improved.
100-voltage 200V,100V:100V,300:380V

Model Flow

(L/min)

 Head

(m)

 Power

(w)

 Speed

(r/min)

 Voltage

(v)

 Liquid density

(g/cm3)
MP-6R 8 1 3 2900 220 ＜1.2
MP-6RZ 5.5 2.1 3 2900 220 ＜1.1
MP-10R 11 1.5 6 2900 220 ＜1.1
MP-15R 16 2.7 10 2900 220 ＜1.3
MP-15RM 16 2.4 10 2900 220 ＜1.3
MP-20R 27 3.1 20 2900 220 ＜1.2
MP-20RM 27 3.1 20 2900 220 ＜1.2
MP-20RX 46 1.8 20 2900 220 ＜1.3
MP-20RXM 46 1.8 20 2900 220 ＜1.3
MP-20RZ 10 4.6 20 2900 220 ＜1.1
MP-20RZM 10 4.6 20 2900 220 ＜1.1
MP-30R 33 3.8 45 2900 220 1.3
MP-30RM 33 3.8 45 2900 220 1.3
MP-30RX 62 2.9 45 2900 220 1.1
MP-30RXM 62 2.9 45 2900 220 1.1
MP-30RZ 15 8 45 2900 220 1.1
MP-30RZM 15 8 45 2900 220 1.1
MP-40R 45 4.6 65 2900 220 1.1
MP-40RM 45 4.6 65 2900 220 1.1
MP-40RX 75 3.3 65 2900 220 1.1
MP-40RXM 75 3.3 65 2900 220 1.1
MP-55R 60 5.6 90 2900 220 1.2
MP-55RM 60 5.6 90 2900 220/380 1.2
MP-55RZ 25 10 90 2900 220/380 1.1
MP-55RZM 25 10 90 2900 220/380 1.1
MP-70R 86 6.7 150/180 2900 220/380 1.1
MP-70RM 86 6.7 150/180 2900 220/380 1.1
MP-100R 120 8.6 250/265 2900 220/380 1.3
MP-100RM 120 8.6 250/265 2900 220/380 1.3
MP-100RX 170 9 250 2900 220/380 1.3
MP-120R 220 10.5 370 2900 220/380 1.3
