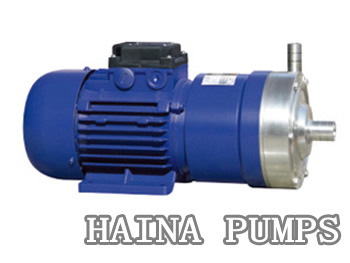

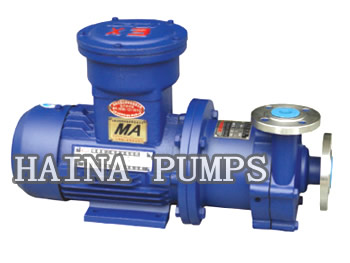

CQ type stainless steel magnetic drive pump can be widely used in chemical, pharmaceutical, petroleum, electroplating, food, film photography, snap, scientific research institutions, defense industry pumping units such as acid, alkali, oil, rare precious liquid, venom, volatile liquid, and circulating water to form a complete set of equipment, filter machine.
Especially leakage, flammable, explosive liquid pumping, the choice of this pump is more ideal.
Features of CQ stainless steel magnetic drive pump:
CQ type ss magnetic drive pump,compact structure, beautiful shape,small volume,low noise, reliable running, convenient operation and maintenance, whole sealing, no leakage, corrosion resistance and other characteristics.
Technical parameters of CQ stainless steel magnetic drive pump:
Performance:
Flow range: 25L/min~1700L/min.
Lift range: 8m~80m.
Motor power: 0.12kw~45kw.
CQ stainless steel magnetic driving pump Model significance:
For example: 50CQ-25
50—— pump inlet diameter (mm)
CQ———- magnetic drive pump.
25—— pump rated head (m)
| Model | (mm) | Head
(m) |
Flow
(L/min) |
Motor
(KW) |
|
| Inlet | Outlet | ||||
| 16CQ-8 | 16 | 12 | 8 | 25 | 0.12 |
| 20CQ-12 | 20 | 14 | 12 | 50 | 0.37 |
| 25CQ-15 | 25 | 20 | 15 | 110 | 1.1 |
| 32CQ-15 | 32 | 25 | 15 | 110 | 1.1 |
| 32CQ-25 | 32 | 25 | 25 | 110 | 1.1 |
| 40CQ-20 | 40 | 32 | 20 | 180 | 2.2 |
| 40CQ-32 | 40 | 32 | 32 | 200 | 4 |
| 50CQ-25 | 50 | 40 | 25 | 240 | 4 |
| 50CQ-40 | 50 | 40 | 40 | 220 | 4 |
| 50CQ-50 | 50 | 32 | 50 | 130 | 5.5 |
| 65CQ-25 | 65 | 50 | 25 | 280 | 5.5 |
| 65CQ-35 | 65 | 50 | 35 | 450 | 7.5 |
| 80CQ-35 | 80 | 65 | 35 | 850 | 11 |
| 80CQ-50 | 80 | 65 | 50 | 850 | 15 |
| 80CQ-80 | 80 | 65 | 80 | 850 | 30 |
| 100CQ-32 | 100 | 80 | 32 | 1700 | 22 |
| 100CQ-50 | 100 | 80 | 50 | 1700 | 30 |
| 100CQ-80 | 100 | 80 | 80 | 1700 | 45 |
