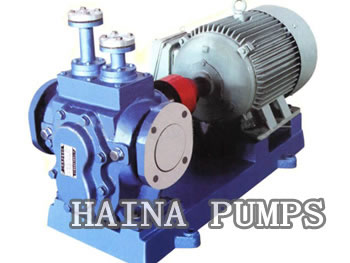

RCB Jacketed Gear Pump

Pump Performance:
flow range:1-324m3/h
pressure range:0.28-0.8Mpa

Feature:
RCB jacketed gear pump can transport non-corrosive, not containing solid particles, with coagulability medium at room temperature. Especially in cold area outdoor media need to heat preservation in the process of installation and process, medium temperature can reach 250 degrees Celsius, viscosity of 5 to 1500 CST

Model	Flow		Head (Mpa)	Npshr m	Caliber mm	Motor
Model	m3/h	L/min	Head (Mpa)	Npshr m	Caliber mm	KW	Model
RCB-1/0.6	1	16.6	0.36	3	16	1.5	Y90L -4
RCB-1/0.8	1	16.6	0.8	3	16	1.5	Y90L -4
RCB-2/0.36	2	33.3	0.36	3	25	1.5	Y90L -4
RCB-2/0.8	2	33.3	0.8	3	25	2.2	Y100L 1-4
RCB-3/0.36	3	50	0.36	3	25	1.5	Y100L -6
RCB-3/0.8	3	50	0.8	3	25	2.2	Y112M -6
RCB-5/0.36	5	83.3	0.36	3	40	2.2	Y100L -4
RCB-5/0.8	5	83.3	0.8	3	40	4	Y112M -4
RCB-6/0.36	6	100	0.36	3	40	2.2	Y132M -6
RCB-6/0.8	6	100	0.8	3	40	4	Y132M 1-6
RCB-8/0.36	8	133	0.36	3	50	4	Y112M -4
RCB-8/0.8	8	133	0.8	3	50	5.5	Y132S-4
RCB-10/0.36	10	167	0.36	3	50	4	Y132M -6
RCB-10/0.8	10	167	0.8	3	50	5.5	Y132M2 -4
RCB-12/0.36	12	200	0.36	3	50	4	Y132M -6
RCB-12/0.8	12	200	0.8	3	50	5.5	Y132M2 -6
RCB-18/0.36	18	300	0.36	3	70	5.5	Y132M2 -6
RCB-18/0.8	18	300	0.8	3	70	7.5	Y160M -6
RCB-29/0.36	29	483.3	0.36	3	70	7.5	Y132M -4
RCB-29/0.8	29	483.3	0.8	3	70	11	Y160M -4
RCB-32/0.36	32	534	0.36	3	100	11	Y160L -6
RCB-32/0.8	32	534	0.8	3	100	15	Y180L -6
RCB-38/0.28	38	633	0.36	3	100	11	Y160L -6
RCB-38/0.36	38	633	0.8	3	100	15	Y180L -6
RCB-58/0.28	58	960	0.36	3	100	18.5	Y180M -4
RCB-58/0.36	58	960	0.8	3	100	22	Y180L -4
RCB-72/0.28	72	1200	0.28	3	150	37	Y250S-8
RCB-96/0.28	96	1600	0.28	3	150	45	Y280S-6
RCB-110/0.28	110	1800	0.28	3	200	55	Y315S-8
RCB-150/0.28	150	2500	0.28	3	200	75	Y315S-6
RCB-170/0.28	228	3800	0.28	3	250	90	Y315L -6
RCB-230/0.28	324	5400	0.28	3	250	110	Y315L -6
