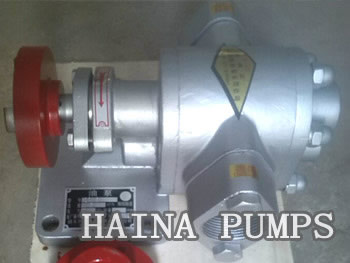

Stainless Steel Rotary Gear Pumps

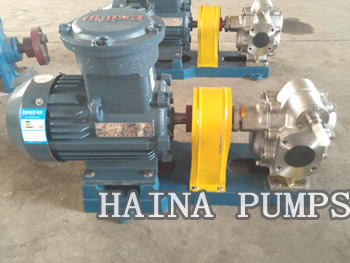

Stainless Steel Rotary Gear PumpsStainless Steel Rotary Gear Pumps with motor

Stainless Steel Rotary Gear Pumps Application:
Pump Model:KCB Series
Flow range:1.1~570m3/h.
Working pressure:0.28-0.36-1.45MPa.
Speed range:960RPM 1450RPM 1760RPM.
Temperature:≤280 ℃
Viscosity range:≤1500mm2/s.
Sealed form: mechanical seal packing seal.
Pump material: stainless steel(304 316 316L)
Applicable scope:Chemical, food, medicine, printing and dyeing.

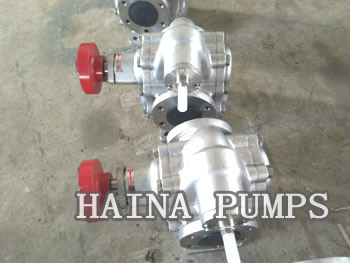

SS Rotary Gear Pumps















SS Rotary Gear Pumps Flow and Head sheet:

Model Flow outlet pressure
Mpa
NPSHrm Inlet/Outletmm Speed Motor
kw
m3/h L/min
KCB-18.3 1.1 18.3 1.45 5 G3/4“ 1400 1.5
KCB-33.3 2 33.3 1.45 5 G3/4“ 1420 2.2
KCB-55 3.3 55 0.33 5 G1″ 1400 1.5
KCB-83.3 5 83.3 0.33 5 G1/2“ 1420 2.2
KCB-135 8 135 0.33 3 Φ50 1440 4
KCB-200 12 200 0.33 3 Φ50 1440 4
KCB-300 18 300 0.36 3 Φ70 960 5.5
KCB-483.3 29 483.3 0.36 3 Φ70 1440 7.5
KCB-633 38 633 0.28 3 Φ100 970 11
KCB-960 58 960 0.28 3 Φ100 1470 18.5
KCB-1200 72 1200 0.6 2 Φ150 740 37
KCB-1600 96 1600 0.6 2 Φ150 980 45
KCB-1800 110 1800 0.6 2 Φ200 740 55
KCB-2500 150 2500 0.6 2 Φ200 980 75
KCB-3800 230 3800 0.6 2 Φ250 990 110
KCB-5400 325 5400 0.6 2 Φ250 990 160
KCB-9600 570 9600 0.6 2 Φ350 990 250
